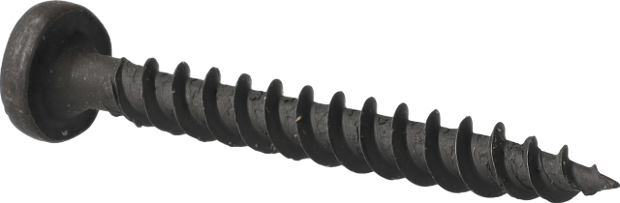

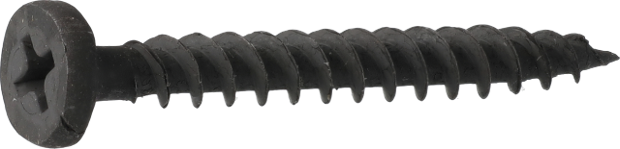

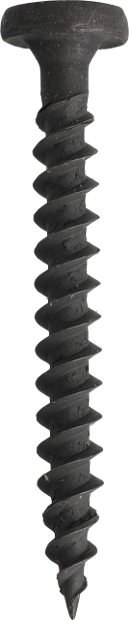

Vis plaque fibre dure sur acier léger, phosphatée

cliquer sur l’image pour zoomer

Description

Vis plaque fibre dure sur acier léger, phosphatée

Afficher la suite Masquer la suite

Harmonized standard EN 14566:2008+A1:2009

Demander des informations

Spécifications

Identification

Article number: 42UM38MP
GTIN: 8718035003805

Spécifications techniques

Collation type: Plastic collated
Wire material: Carbon steel standard tensile
Rotations per minute: 3300, 4000, 5000 RPM

Spécifications consommables

Finish: Phosphated (grey)
Application environment: Indoor
Point type: Sharp
Pointangle: 23 °
Screw recess: Senco drive 25
Screw thread type: Fine
Amount fasteners on strip/coil: 50 - 50
Screw length: 38.0 mm
Screw diameter: 4.2 mm

Spécifications CE

DOP No: 42UM38MP
Service class: 1
Inner threaded diameter: 2.95 mm
Threaded/profiled length: 33.0 mm
Harmonized standard: EN 14566:2008+A1:2009

Spécifications non techniques

Package quantity: 1000

Spécifications logistiques

Net weight: 2.37 kg

Outils connexes

Téléchargements

42UM38MP_fr_CommercialProductSheet_1.1_1750147543122 PDF 1 Mb
DOP DSP980005 PDF 403 Kb
DOP DSP980005 PDF 403 Kb
42UM38MP_fr_DeclarationOfPerformanceDoP_1.0eu_1750147626707 PDF 59 Kb
