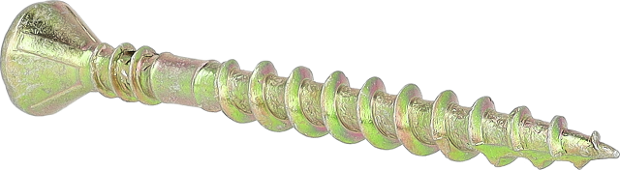

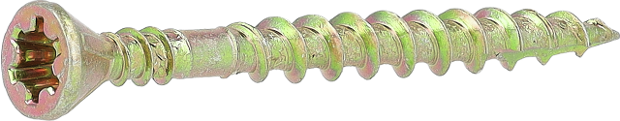

Vis plancher bois sur bois, zinc jaune

Spécifications

Identification

Article number

42RH35MY

GTIN

8715274027814

Spécifications techniques

Collation type

Plastic collated

Wire material

Carbon steel standard tensile

Rotations per minute

2300, 2500, 3000, 3300 RPM

Spécifications consommables

Finish

Yellow zinc

Application environment

Indoor

Point type

Type 17 cut point

Pointangle

23 °

Screw head type

Small with 4 nibs

Screw recess

Senco drive 25

Screw thread type

2/3 coarse

Amount fasteners on strip/coil

50 - 50

Screw length

35.0 mm

Screw diameter

4.2 mm

Spécifications CE

Characteristic head pull through parameter

16.0 N/mm²

DOP No

42RH35MY

Material notification on CE label

Non-alloy steel

Protection level in micron

3

Service class

1

Inner threaded diameter

2.95 mm

Threaded/profiled length

23.0 mm

Characteristic yield moment

3283.0 Nmm

Torsional ratio

≥ 1,5

Characteristic torsional resistance

1.47 Nm

Characteristic torsional strength

3.47 Nm

Characteristic tensile capacity

4700.0 N

Harmonized standard

EN 14592:2008+A1:2012

Characteristic withdrawal parameter

12.0 N/mm²

Spécifications non techniques

Package quantity

1000

Spécifications logistiques

Net weight

2.1 kg
