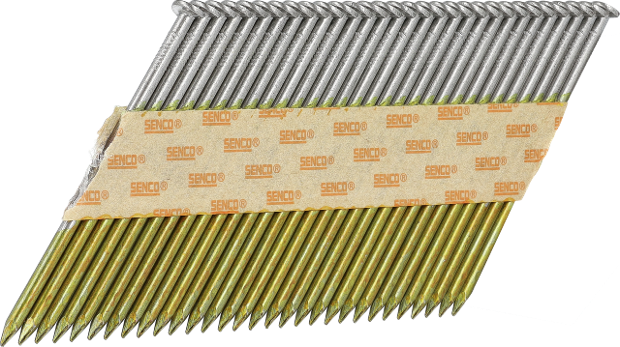

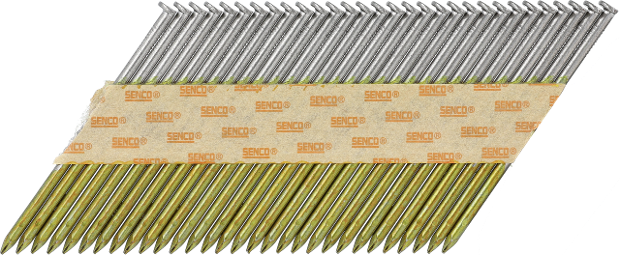

Clous en bande lisses 2,87 mm, brillant de base, revêtement Sencote

cliquer sur l’image pour zoomer

Description

2,87mm smooth stripnail, bright basic, Sencoted

Afficher la suite Masquer la suite

Harmonized standard EN 14592:2008+A1:2012

Demander des informations

Spécifications

Identification

Article number: GC51APBKR
GTIN: 8715274028545

Spécifications techniques

Collation angle: 34 °
Collation type: Paper collated
Wire material: Carbon steel standard tensile

Spécifications consommables

Finish: Bright basic standard tensile
Coating: Sencoted
Application environment: Indoor
Type of nail: CH stripnails
Nail head type: Clipped head
Nail shank type: Smooth shank
Point type: Diamond
Pointangle: 40 °
Nail diameter: 2.87 mm
Amount fasteners on strip/coil: 29 - 31
Nail length: 50.0 mm

Spécifications CE

Characteristic head pull through parameter: 27.12 N/mm²
CE fastener type: Round cross-section plain shank nail
DOP No: GC51APBKR
Service class: 1
Coating type: Coating type 3
Coating length: 26.0 mm
Head cross sectional area: 30.0 mm
Characteristic yield moment: 3054.0 Nmm
Characteristic tensile strength: 695.0 N/mm²
Harmonized standard: EN 14592:2008+A1:2012
Characteristic withdrawal parameter: 2.45 N/mm²

Spécifications non techniques

Package quantity: 2000

Spécifications logistiques

Net weight: 5.41 kg

Outils connexes

Téléchargements

GC51APBKR_fr_CommercialProductSheet_1.3_1729081875733 PDF 1 Mb
DOP VS-CPR-201305-S026 PDF 198 Kb
GC51APBKR_fr_DeclarationOfPerformanceDoP_1.0eu_1729082050365 PDF 62 Kb
